Via Tenting, Via Opening, Via Plugging

Tuesday,Mar 15,2016

 What is VIA?
A via or VIA (also known as vertical interconnect access) is an electrical connection between layers in a physical electronic circuit that goes through the plane of one or more adjacent layers.
In printed circuit board design, a via consists of two pads in corresponding positions on different layers of the board, that are electrically connected by a hole through the board. The hole is made conductive by electroplating, or is lined with a tube or a rivet.
A VIA consists of:
Barrel: conductive tube filling the drilled hole
Pad :connects each end of the barrel to the component, plane or trace

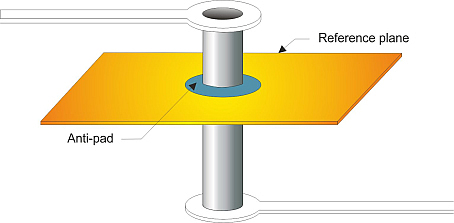

Anti-pad : clearance hole between barrel and metal layer to which it is not connected

Definition of different VIA:

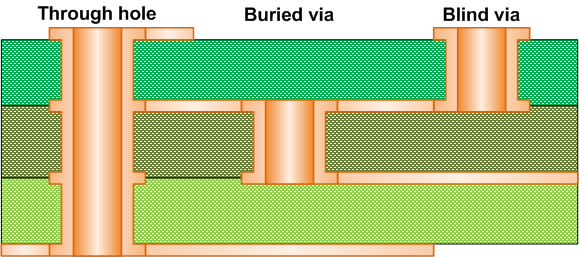

Through hole via: A Via that goes from top to bottom layer, For example: Via from L1-L4
Blind Via: A Via that goes from top to inner layer, or from bottom to inner layer. For example, via from L1-L2, L1-L3, etc
Buried Via: A Via that goes from one inner layer to another inner layer, For example, via from L2-L3

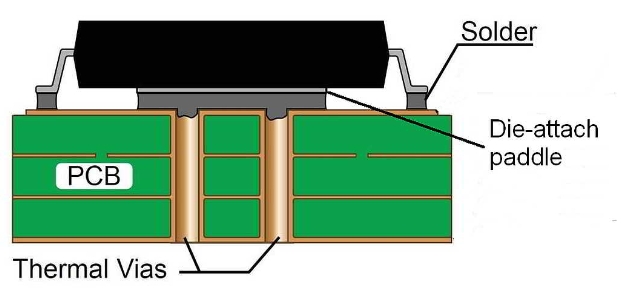

Thermal Via: A Via that carry heat away from power devices and are typically used in arrays of about a dozen.

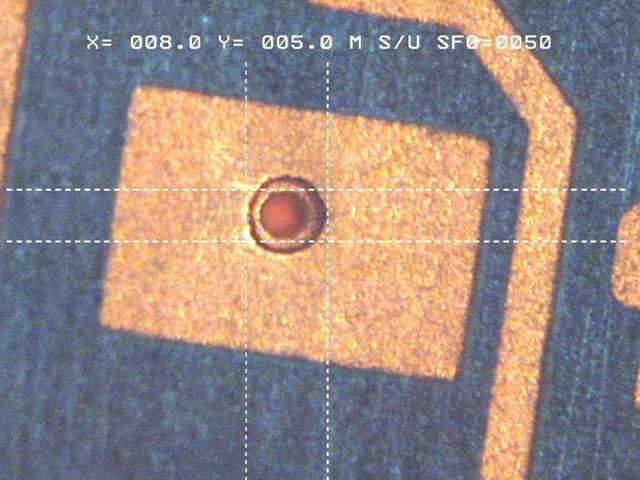

Micro-Via: A Via that is smaller than 0.15mm,  normally drilled by laser

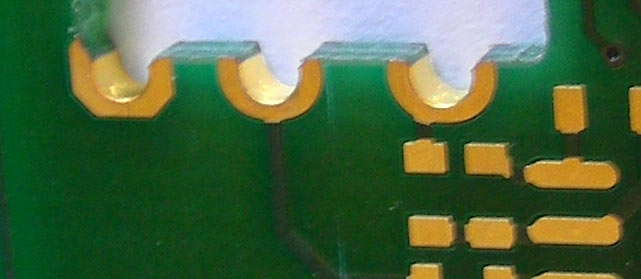

Castellated hole Via: A plated drill cut in half at the edge of the board

How do you handle your VIA?
Basically there are 3 ways to handle your VIA:
1. Via Tenting=Solder Mask Covering

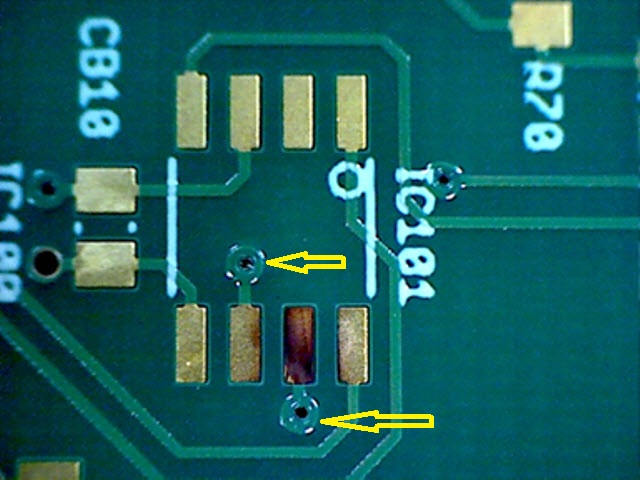

Via Tenting means to cover the annular ring and via hole with solder mask. The main purpose is to cover the annular ring to prevent exposure to the elements and reduce accidental shorting or contact with the circuit.

2. Via Opening=Solder Mask Opening

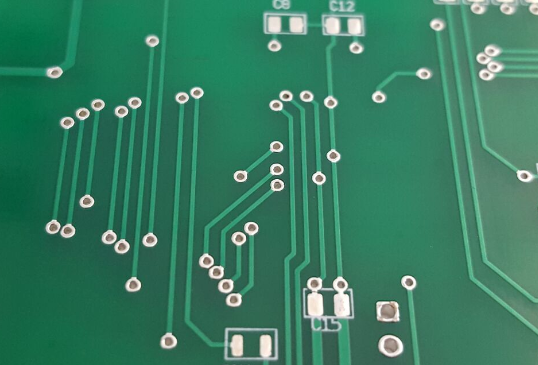

Via Opening is opposite to Via Tenting, you don't need to do anything about vias, just let them expose. In many cases, there is no functionality difference between via tenting and via opening, but via tenting is better looking.

3. Via Plugging=Solder Mask Filling

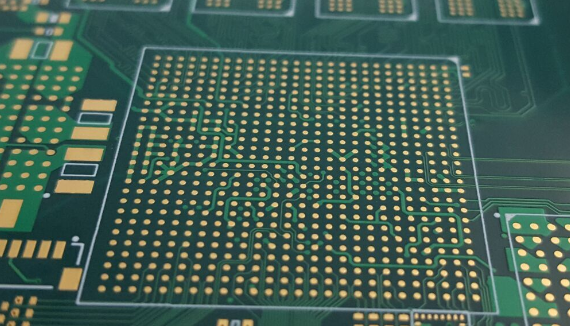

Via Plugging is to make via plugged and sealed with mask, and the annular ring is covered. A common application for this is on a BGA design where vias are found in very close proximity to the BGA’s SMD pads.  The concern is during assembly, solder will wick away from the intended pad and flow down the via creating poor or non-existent solder joints.
